Error analysis of the global pre-processing workflow#
Here we reproduce the error analysis shown in Maussion et al. (2019) for the pre-processing part only, and for the glacier directories (version 1.6 and 1.4). The error analysis of user runs needs a separate handling, see the deal_with_errors notebook for more information.
Get the files#
We download the glacier_statistics files from the preprocessed directories folders, at the level 5. That is, we are going to count all errors that happened during the pre-processing chain.
from oggm import utils
import pandas as pd
import seaborn as sns
We will start with a preprocessed directory for OGGM v1.6 (W5E5 with centerlines):
# W5E5 centerlines
url = 'https://cluster.klima.uni-bremen.de/~oggm/gdirs/oggm_v1.6/L3-L5_files/2025.6/centerlines/W5E5/per_glacier_spinup/RGI62/b_080/L5/summary/' #todo-wait-until-gdir-ready
# this can take some time
df = []
for rgi_reg in range(1, 19):
fpath = utils.file_downloader(url + f'glacier_statistics_{rgi_reg:02d}.csv')
df.append(pd.read_csv(fpath, index_col=0, low_memory=False))
df = pd.concat(df, sort=False).sort_index()
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
Cell In[3], line 5
3 for rgi_reg in range(1, 19):
4 fpath = utils.file_downloader(url + f'glacier_statistics_{rgi_reg:02d}.csv')
----> 5 df.append(pd.read_csv(fpath, index_col=0, low_memory=False))
6 df = pd.concat(df, sort=False).sort_index()
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/pandas/io/parsers/readers.py:873, in read_csv(filepath_or_buffer, sep, delimiter, header, names, index_col, usecols, dtype, engine, converters, true_values, false_values, skipinitialspace, skiprows, skipfooter, nrows, na_values, keep_default_na, na_filter, skip_blank_lines, parse_dates, date_format, dayfirst, cache_dates, iterator, chunksize, compression, thousands, decimal, lineterminator, quotechar, quoting, doublequote, escapechar, comment, encoding, encoding_errors, dialect, on_bad_lines, low_memory, memory_map, float_precision, storage_options, dtype_backend)
861 kwds_defaults = _refine_defaults_read(
862 dialect,
863 delimiter,
(...) 869 dtype_backend=dtype_backend,
870 )
871 kwds.update(kwds_defaults)
--> 873 return _read(filepath_or_buffer, kwds)
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/pandas/io/parsers/readers.py:300, in _read(filepath_or_buffer, kwds)
297 _validate_names(kwds.get("names", None))
299 # Create the parser.
--> 300 parser = TextFileReader(filepath_or_buffer, **kwds)
302 if chunksize or iterator:
303 return parser
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/pandas/io/parsers/readers.py:1645, in TextFileReader.__init__(self, f, engine, **kwds)
1642 self.options["has_index_names"] = kwds["has_index_names"]
1644 self.handles: IOHandles | None = None
-> 1645 self._engine = self._make_engine(f, self.engine)
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/pandas/io/parsers/readers.py:1904, in TextFileReader._make_engine(self, f, engine)
1902 if "b" not in mode:
1903 mode += "b"
-> 1904 self.handles = get_handle(
1905 f,
1906 mode,
1907 encoding=self.options.get("encoding", None),
1908 compression=self.options.get("compression", None),
1909 memory_map=self.options.get("memory_map", False),
1910 is_text=is_text,
1911 errors=self.options.get("encoding_errors", "strict"),
1912 storage_options=self.options.get("storage_options", None),
1913 )
1914 assert self.handles is not None
1915 f = self.handles.handle
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/pandas/io/common.py:772, in get_handle(path_or_buf, mode, encoding, compression, memory_map, is_text, errors, storage_options)
769 codecs.lookup_error(errors)
771 # open URLs
--> 772 ioargs = _get_filepath_or_buffer(
773 path_or_buf,
774 encoding=encoding,
775 compression=compression,
776 mode=mode,
777 storage_options=storage_options,
778 )
780 handle = ioargs.filepath_or_buffer
781 handles: list[BaseBuffer]
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/pandas/io/common.py:492, in _get_filepath_or_buffer(filepath_or_buffer, encoding, compression, mode, storage_options)
488 if not (
489 hasattr(filepath_or_buffer, "read") or hasattr(filepath_or_buffer, "write")
490 ):
491 msg = f"Invalid file path or buffer object type: {type(filepath_or_buffer)}"
--> 492 raise ValueError(msg)
494 return IOArgs(
495 filepath_or_buffer=filepath_or_buffer,
496 encoding=encoding,
(...) 499 mode=mode,
500 )
ValueError: Invalid file path or buffer object type: <class 'NoneType'>
Analyze the errors#

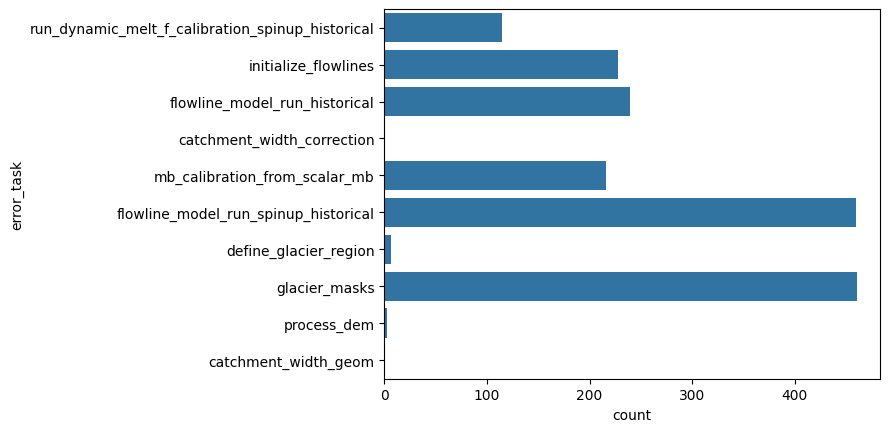

sns.countplot(y="error_task", data=df);
---------------------------------------------------------------------------
TypeError Traceback (most recent call last)
Cell In[4], line 1
----> 1 sns.countplot(y="error_task", data=df);
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/seaborn/categorical.py:2631, in countplot(data, x, y, hue, order, hue_order, orient, color, palette, saturation, fill, hue_norm, stat, width, dodge, gap, log_scale, native_scale, formatter, legend, ax, **kwargs)
2628 elif x is not None and y is not None:
2629 raise TypeError("Cannot pass values for both `x` and `y`.")
-> 2631 p = _CategoricalAggPlotter(
2632 data=data,
2633 variables=dict(x=x, y=y, hue=hue),
2634 order=order,
2635 orient=orient,
2636 color=color,
2637 legend=legend,
2638 )
2640 if ax is None:
2641 ax = plt.gca()
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/seaborn/categorical.py:67, in _CategoricalPlotter.__init__(self, data, variables, order, orient, require_numeric, color, legend)
56 def __init__(
57 self,
58 data=None,
(...) 64 legend="auto",
65 ):
---> 67 super().__init__(data=data, variables=variables)
69 # This method takes care of some bookkeeping that is necessary because the
70 # original categorical plots (prior to the 2021 refactor) had some rules that
71 # don't fit exactly into VectorPlotter logic. It may be wise to have a second
(...) 76 # default VectorPlotter rules. If we do decide to make orient part of the
77 # _base variable assignment, we'll want to figure out how to express that.
78 if self.input_format == "wide" and orient in ["h", "y"]:
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/seaborn/_base.py:634, in VectorPlotter.__init__(self, data, variables)
629 # var_ordered is relevant only for categorical axis variables, and may
630 # be better handled by an internal axis information object that tracks
631 # such information and is set up by the scale_* methods. The analogous
632 # information for numeric axes would be information about log scales.
633 self._var_ordered = {"x": False, "y": False} # alt., used DefaultDict
--> 634 self.assign_variables(data, variables)
636 # TODO Lots of tests assume that these are called to initialize the
637 # mappings to default values on class initialization. I'd prefer to
638 # move away from that and only have a mapping when explicitly called.
639 for var in ["hue", "size", "style"]:
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/seaborn/_base.py:679, in VectorPlotter.assign_variables(self, data, variables)
674 else:
675 # When dealing with long-form input, use the newer PlotData
676 # object (internal but introduced for the objects interface)
677 # to centralize / standardize data consumption logic.
678 self.input_format = "long"
--> 679 plot_data = PlotData(data, variables)
680 frame = plot_data.frame
681 names = plot_data.names
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/seaborn/_core/data.py:57, in PlotData.__init__(self, data, variables)
51 def __init__(
52 self,
53 data: DataSource,
54 variables: dict[str, VariableSpec],
55 ):
---> 57 data = handle_data_source(data)
58 frame, names, ids = self._assign_variables(data, variables)
60 self.frame = frame
File /usr/local/pyenv/versions/3.13.12/lib/python3.13/site-packages/seaborn/_core/data.py:278, in handle_data_source(data)
276 elif data is not None and not isinstance(data, Mapping):
277 err = f"Data source must be a DataFrame or Mapping, not {type(data)!r}."
--> 278 raise TypeError(err)
280 return data
TypeError: Data source must be a DataFrame or Mapping, not <class 'list'>.
"% area errors all sources: {:.2f}%".format(df.loc[~df['error_task'].isnull()].rgi_area_km2.sum() / df.rgi_area_km2.sum() * 100)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[5], line 1
----> 1 "% area errors all sources: {:.2f}%".format(df.loc[~df['error_task'].isnull()].rgi_area_km2.sum() / df.rgi_area_km2.sum() * 100)
AttributeError: 'list' object has no attribute 'loc'
"% failing glaciers all sources: {:.2f}%".format(df.loc[~df['error_task'].isnull()].rgi_area_km2.count() / df.rgi_area_km2.count() * 100)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[6], line 1
----> 1 "% failing glaciers all sources: {:.2f}%".format(df.loc[~df['error_task'].isnull()].rgi_area_km2.count() / df.rgi_area_km2.count() * 100)
AttributeError: 'list' object has no attribute 'loc'
We now look at the errors that occur already before applying the climate tasks and the historical run (i.e., before mb_calibration_from_scalar_mb and flowline_model_run_historical):
dfe = df.loc[~df['error_task'].isnull()]
dfe = dfe.loc[~dfe['error_task'].isin(['mb_calibration_from_scalar_mb','flowline_model_run_historical'])]
"% area errors before climate: {:.2f}%".format(dfe.rgi_area_km2.sum() / df.rgi_area_km2.sum() * 100)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[7], line 1
----> 1 dfe = df.loc[~df['error_task'].isnull()]
2 dfe = dfe.loc[~dfe['error_task'].isin(['mb_calibration_from_scalar_mb','flowline_model_run_historical'])]
3 "% area errors before climate: {:.2f}%".format(dfe.rgi_area_km2.sum() / df.rgi_area_km2.sum() * 100)
AttributeError: 'list' object has no attribute 'loc'
"% failing glaciers all sources: {:.2f}%".format(dfe.loc[~dfe['error_task'].isnull()].rgi_area_km2.count() / df.rgi_area_km2.count() * 100)
---------------------------------------------------------------------------
NameError Traceback (most recent call last)
Cell In[8], line 1
----> 1 "% failing glaciers all sources: {:.2f}%".format(dfe.loc[~dfe['error_task'].isnull()].rgi_area_km2.count() / df.rgi_area_km2.count() * 100)
NameError: name 'dfe' is not defined
Although there are already many glaciers failing before the climate tasks, from a relative missing glacier area perspective, much less of the failing glacier area occurs. The reason is that the largest failing glaciers have mostly flowline_model_run_historical errors that only occur in the preprocessed directories level 4 or higher (after the climate tasks):
# 15 largest glaciers
df.loc[~df['error_task'].isnull()].sort_values(by='rgi_area_km2',
ascending=False)[['rgi_area_km2', 'error_task',
'error_msg']].iloc[:15]
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[9], line 2
1 # 15 largest glaciers
----> 2 df.loc[~df['error_task'].isnull()].sort_values(by='rgi_area_km2',
3 ascending=False)[['rgi_area_km2', 'error_task',
4 'error_msg']].iloc[:15]
AttributeError: 'list' object has no attribute 'loc'
Example error comparison#
centerlines vs elevation bands:
# W5E5 elevation bands
url = 'https://cluster.klima.uni-bremen.de/~oggm/gdirs/oggm_v1.6/L3-L5_files/2023.3/elev_bands/W5E5/RGI62/b_080/L5/summary/'
# this can take some time
df_elev = []
# we don't look at RGI19 (Antarctic glaciers), because no climate available for CRU
for rgi_reg in range(1, 19):
fpath = utils.file_downloader(url + f'glacier_statistics_{rgi_reg:02d}.csv')
df_elev.append(pd.read_csv(fpath, index_col=0, low_memory=False))
df_elev = pd.concat(df_elev, sort=False).sort_index()
rel_area_elev = df_elev.loc[~df_elev['error_task'].isnull()].rgi_area_km2.sum() / df_elev.rgi_area_km2.sum() * 100
rel_area_cent = df.loc[~df['error_task'].isnull()].rgi_area_km2.sum() / df.rgi_area_km2.sum() * 100
print(f'% area errors from all sources for elevation band flowlines is {rel_area_elev:.2f}%'+'\n'
f'compared to {rel_area_cent:.2f}% for centerlines with W5E5')
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[11], line 2
1 rel_area_elev = df_elev.loc[~df_elev['error_task'].isnull()].rgi_area_km2.sum() / df_elev.rgi_area_km2.sum() * 100
----> 2 rel_area_cent = df.loc[~df['error_task'].isnull()].rgi_area_km2.sum() / df.rgi_area_km2.sum() * 100
3 print(f'% area errors from all sources for elevation band flowlines is {rel_area_elev:.2f}%'+'\n'
4 f'compared to {rel_area_cent:.2f}% for centerlines with W5E5')
AttributeError: 'list' object has no attribute 'loc'
much fewer errors occur when using elevation band flowlines than when using centerlines!
-> Reason: fewer glacier_mask errors!
# you can check out the different error messages with that,
# but we only output the first 20 here
df_elev.error_msg.dropna().unique()[:20]
array(['ValueError: Trapezoid beds need to have origin widths > 0.',
'ValueError: operands could not be broadcast together with shapes (4,) (5,) ',
'AssertionError: ',
'ValueError: operands could not be broadcast together with shapes (3,) (5,) ',
'RuntimeError: RGI60-01.24246: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: RGI60-01.24248: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: RGI60-01.24600: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: RGI60-01.24602: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: RGI60-01.24603: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: RGI60-01.26517: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: RGI60-01.26971: we tried very hard but we could not find a combination of parameters that works for this ref mb.',
'RuntimeError: Glacier exceeds domain boundaries, at year: 2007.4166666666667',
'InvalidDEMError: (RGI60-02.13793) DEM altidude range too small.',
'RuntimeError: Glacier exceeds domain boundaries, at year: 1983.75',
'RuntimeError: Glacier exceeds domain boundaries, at year: 1984.0833333333333',
'RuntimeError: Glacier exceeds domain boundaries, at year: 1983.25',
'RuntimeError: Glacier exceeds domain boundaries, at year: 1997.8333333333333',
'RuntimeError: Glacier exceeds domain boundaries, at year: 1985.25',
'ValueError: operands could not be broadcast together with shapes (2,) (5,) ',
'RuntimeError: Glacier exceeds domain boundaries, at year: 1973.3333333333333'],
dtype=object)
Compare different climate datasets
this works only when using OGGM v1.4 urls (comparing CRU vs ERA5)
in OGGM v1.6 (state: March 2023), only GSWP3_W5E5 exists
# attention here OGGM_v1.4 is used and this is just for demonstration purposes how to compare
# different preprocessed directories!
# This is CRU + centerlines. But you can try CRU+elev_bands, or ERA5+elev_bands, etc!
url = 'https://cluster.klima.uni-bremen.de/~oggm/gdirs/oggm_v1.4/L3-L5_files/CRU/centerlines/qc3/pcp2.5/no_match/RGI62/b_040/L5/summary/'
# this can take some time
df_cru_v14 = []
# we don't look at RGI19 (Antarctic glaciers), because no climate available for CRU
for rgi_reg in range(1, 19):
fpath = utils.file_downloader(url + f'glacier_statistics_{rgi_reg:02d}.csv')
df_cru_v14.append(pd.read_csv(fpath, index_col=0, low_memory=False))
df_cru_v14 = pd.concat(df_cru_v14, sort=False).sort_index()
# ERA5 uses a different precipitation factor in OGGM_v1.4
url = 'https://cluster.klima.uni-bremen.de/~oggm/gdirs/oggm_v1.4/L3-L5_files/ERA5/centerlines/qc3/pcp1.6/no_match/RGI62/b_040/L5/summary/'
# this can take some time
df_era5_v14 = []
# we don't look at RGI19 (Antarctic glaciers), because no climate available for CRU
for rgi_reg in range(1, 19):
fpath = utils.file_downloader(url + f'glacier_statistics_{rgi_reg:02d}.csv')
df_era5_v14.append(pd.read_csv(fpath, index_col=0, low_memory=False))
df_era5_v14 = pd.concat(df_era5_v14, sort=False).sort_index()
rel_area_cent_era5_v14 = df_era5_v14.loc[~df_era5_v14['error_task'].isnull()].rgi_area_km2.sum() / df_era5_v14.rgi_area_km2.sum() * 100
rel_area_cent_cru_v14 = df_cru_v14.loc[~df_cru_v14['error_task'].isnull()].rgi_area_km2.sum() / df_cru_v14.rgi_area_km2.sum() * 100
print(f"% area errors all sources for ERA5 is {rel_area_cent_era5_v14:.2f}% compared to {rel_area_cent_cru_v14:.2f}% for CRU")
% area errors all sources for ERA5 is 0.92% compared to 3.24% for CRU
more than three times fewer errors from the climate tasks occur when using ERA5 than when using CRU !
Compare between OGGM versions (and climate datasets)
print('% area errors from all sources for centerlines is: \n'+
f'{rel_area_cent_cru_v14:.2f}% for CRU and OGGM_v14 \n'+
f'{rel_area_cent_era5_v14:.2f}% for ERA5 and OGGM_v14 \n'+
f'{rel_area_cent:.2f}% for W5E5 and OGGM_v16')
---------------------------------------------------------------------------
NameError Traceback (most recent call last)
Cell In[16], line 4
1 print('% area errors from all sources for centerlines is: \n'+
2 f'{rel_area_cent_cru_v14:.2f}% for CRU and OGGM_v14 \n'+
3 f'{rel_area_cent_era5_v14:.2f}% for ERA5 and OGGM_v14 \n'+
----> 4 f'{rel_area_cent:.2f}% for W5E5 and OGGM_v16')
NameError: name 'rel_area_cent' is not defined
Great, the most recent preprocessed directories create the least amount of failing glacier area
This is either a result of the different applied climate, MB calibration or other changes in OGGM_v16. This could be checked more in details by looking into which tasks fail less.
What’s next?#
A more detailed analysis of the type, amount and relative failing glacier area (in total and per RGI region) can be found in this error analysis jupyter notebook. It also includes an error analysis for different MB calibration and climate quality check methods.
If you are interested in how the “common” non-failing glaciers differ in terms of historical volume change, total mass change and specific mass balance between different pre-processed glacier directories, you can check out this jupyter notebook.
return to the OGGM documentation
back to the table of contents
